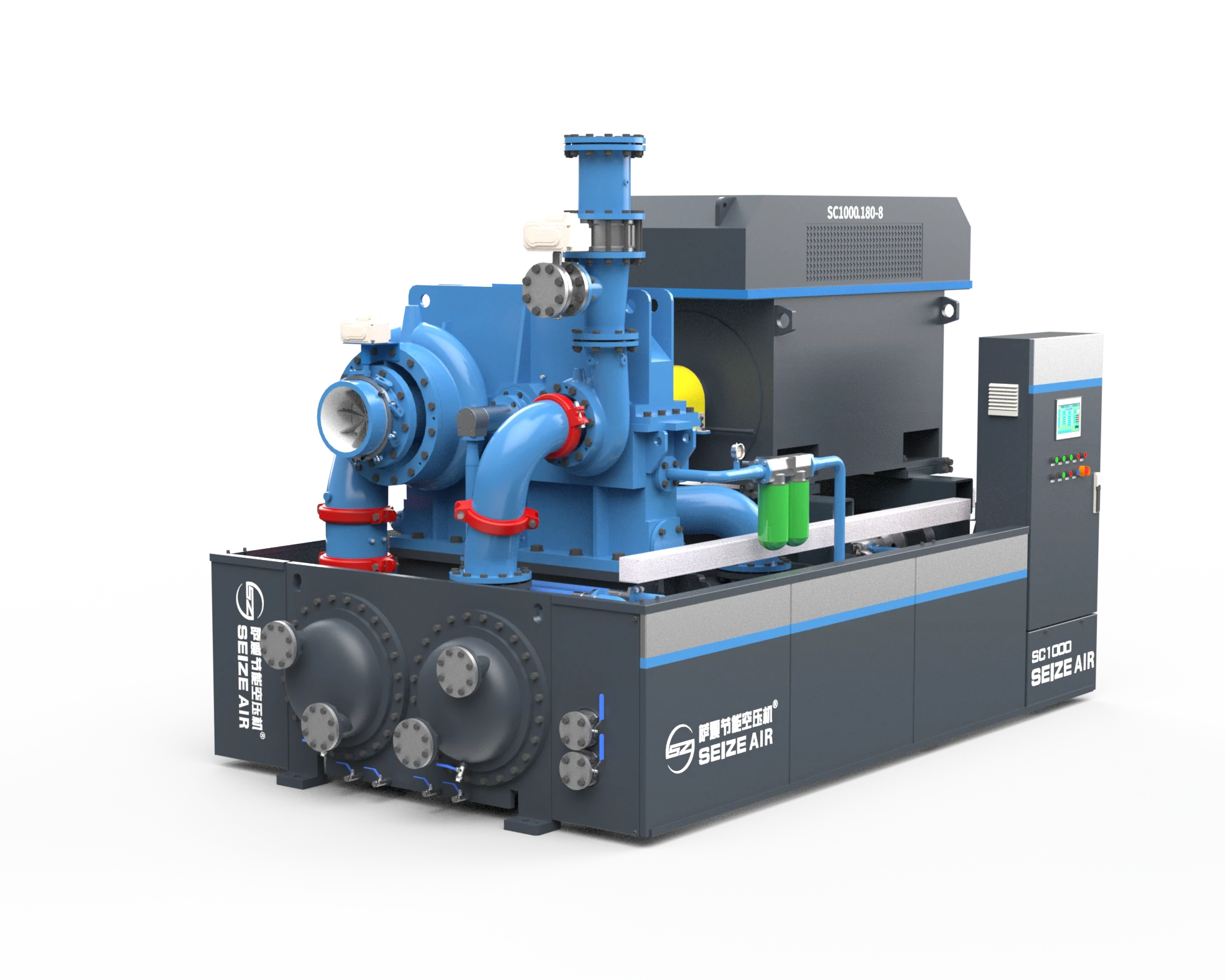

Gear centrifugal air compressor

Gear centrifugal air compressor features:

---

Pneumatic parameters are designed according to customer working conditions, with the best operating efficiency point and wider operating conditions

High-speed rotor design complies with API672 standards, mature and reliable

A

• Integrated assembly, simple structure, compact layout
• Provide 100% oil-free air
• Three-stage compressor unit with high efficiency and low operating cost
• Long-life single-shaft double-impeller rotor structure
• High-efficiency air cooler
• Automatic control system with microprocessor as the core
• Constant pressure control and automatic dual control
• Simple operation, less daily maintenance
• High-quality and complete after-sales service and spare parts supply

B

• The maintenance time is only one-seventh of the vertical split type
• Inspection of seals, bearings and gears only takes 2.5 hours
• Inspecting gear bearings only requires lifting the upper cover
• The whole process only takes 2.5 hours

C

• High-efficiency three-dimensional backward curved impeller
• Using hard stainless steel material Armco17.4pH
• More optimized parameter design
• Each impeller is subjected to 115% overspeed test
• Unique micro-spline connection, can transmit up to 10,000kW power
• Easy to install and disassemble without damaging parts

D

• Air is sucked in from the air inlet
• Air is compressed by the first-stage impeller
• Heat and condensed water are taken away in the first-stage intercooler
• Air is further compressed by the second stage
• More heat and condensed water are taken away in the second-stage intercooler
• Air is compressed to the final pressure in the third stage
• Air is discharged from the outlet and further cooled by the aftercooler before entering the user system

Application areas:

---

• Petrochemical industry, using compressed air as oxidation reaction gas to provide power, etc.
• Textile and chemical fiber industry, compressed air affects the quality and hygiene of fabrics, etc.
• Aerospace industry, engine simulation wind tunnel, pneumatic component testing system, etc.
• Metal smelting industry, heat treatment, instrument gas, air separation nitrogen as protective gas, etc.
